Stampante DTF (specifica standard)

-OEM Accetta
-Area di stampa: 300 mm/600 mm (12"/24")
-Sistema di alimentazione continua del serbatoio dell'inchiostro
-Prestazioni di stampa stabili

Product Category:

Stampanti DTF


key word:

DTF printer OEM DTF printer
undefined

undefined

Descrizione

DTF Printer Costumization (Standard specification)



After Hanrun Paper launched the EVO and PRO series of DTF machines, we provided OEM services for the majority of our dealers and distributors.
We have standard specifications for 600mm(24") and 300mm(12") DTF printers, if you have your own needs and designs, you can contact us to costumize. But please note that the MOQ for OEM orders is 5 units



Specifications

DTF PRINTER 330mm (Standard Specifications)
  Optional printing size 300mm
  Printhead EPSON XP600 2 printhead EPSON XP600 4 printhead
  Max. Printing Speed 6m2/h 12m2/h
  Ink DTF Ink(CMYK+W)
  Print media DTF film
  Voltage AV110V/220V (+10%) 50HZ/60HZ
  Working environment Temperature 20-28°C Humidity 40-70%RH
  Dimensions of Printer L810 * W700 * H500 mm L980 * W720 * H500 mm
  Wooden box packing size L1130* W760 * H620mm(With Smoke purifier) L1300* W820 * H630mm(With Smoke purifier)
  L1180*W760*H620mm(With Smoke purifier) /
  Machine net weight 44kg/64kg(With Smoke purifier) 49kg/59kg(With Smoke purifier)





DTF PRINTER 600mm (Standard Specifications)
Printhead EPSON i3200 2 heads EPSON i3200 4 heads
Print Resolution/Speed 3pass(360*1800dpi): 16m2/h
4pass(720*1200dpi): 12m2/h
6pass(720* 1800dpi): 8m2/h
3pass(360*1800dpi): 32m2/h
4pass(720* 1200dpi): 24m2/h
6pass(720*1800dpi): 16m2/h
Ink Special ink for heat transfer(CMYK+W)
Print wide 600mm
Print media DTF film
Heating device Front, middle and rear three-stage heating
Voltage AV110V/220V (+10%) 50HZ/60HZ
Working environment Temperature 20-28°C Humidity 40-70%RH
Power lKw (w/o Heater)
Printer size L1740mm*W805mm*H1300mm
Packing size L2440mm*W730mm*H620mm(With Smoke purifier)
Printer net weight 110kg/120kg(With Smoke purifier)
Printer gross weight 145kg/173kg(With Smoke purifier)



Considering the complexity of the production process, we launched this printer, special for DTF printing. This machine combined the inkjet printer and shaking powder machine, sloved the limitation of the number of the machine. This innovation make the two machines into one, improve the work efficiency and reduce the labor cost.



Features

Intelligent System and 10% higher printing efficiency

Combine printing, shaking and heating into one machine

Stable printing performance

# Easy operation and reduce labor expenses

#  Ink Tank Continuous Feed System



Application

Washing labels for garments

# Fashion clothes(most kinds of garments and no need to distinguish colors)

Personalized customization

# Customzied wood products

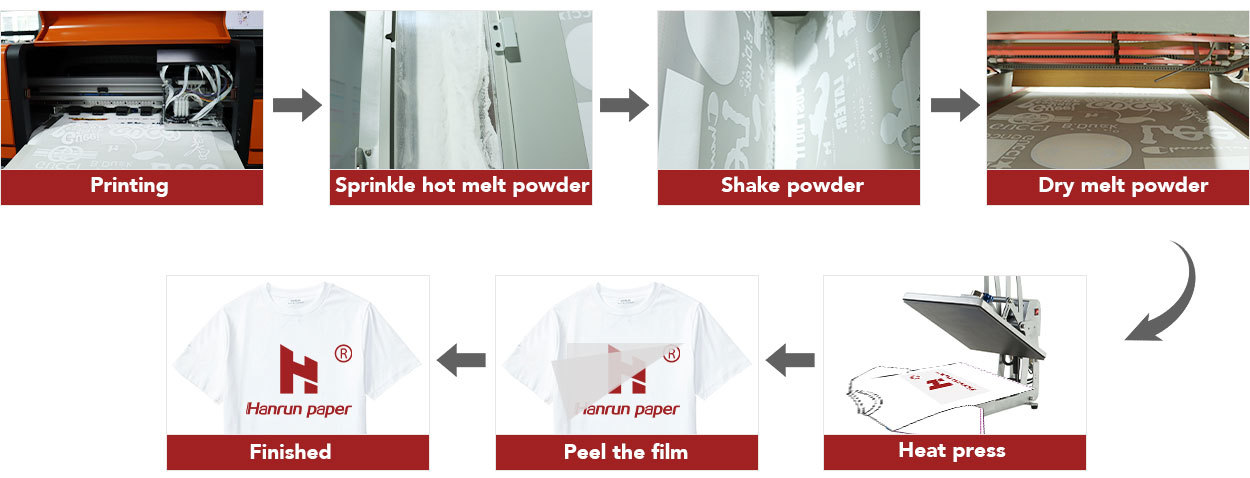

Work Flow





Other materials you may need (need to be purchased separately):

- DTF Printer
- DTF Powder Shaker
- DTF Inks (Basic: PRO-ink001)
- DTF Film (Basic: Evo 75u/100u single-sided/double-sided matte-glossy film)
- DTF Powder (white powder, black powder)
- Windows 7 or higher Computer (PC) with an available USB port
- Heat press machine for finishing (curing) the final print
- Humidifier (to keep the humidity above 40% in the print room) - recommended
